Model:
Your Model No.:
Mfr. No.:
Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.
Overall Width
-
10"
Overall Length
-
31"
Overall Height
-
21"
No Load Speed
-
4200 RPM
Amperage
-
15 A
Bevel Capacity
-
45°
Cord Length
-
15'
Edge Guide
-
45° & 90°
Peak HP
-
1.5 HP
Arbor Size
-
5/8"
Diagonal Cutting Capacity
-
24" x 24"
Max Dept Of Cut
-
3-3/8"
Country Of Origin
-
China

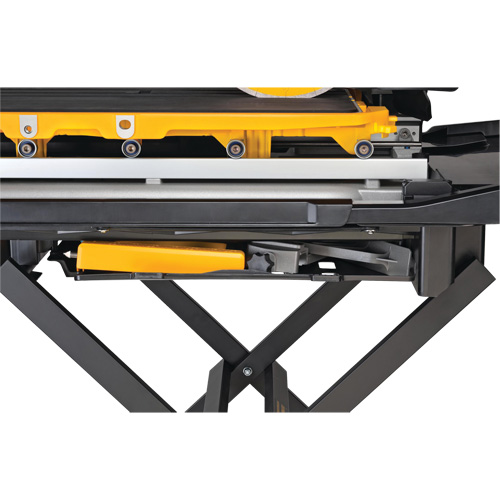

- Cutline indicator, rigid frame, and stainless-steel rollers provide cutting accuracy to within 1/32 in. over 30 in. cuts
- 8-1/2 in. crosscut capacity is ideal for cutting 6 in. sills and 8 in. x 48 in. planks at a 30% offset
- 28-7/8 in. width from column to cart edge fits through standard 30 in. door frames
- 18 in. x 36 in. and 24 in. x 24 in. tile can be fully contained within the water tray system to help keep the work area clean and dry
- 37 in. rip cut capacity (41 in. with plunge) and 18 in. cutting clearance left of blade allows users to rip 36 in. x 36 in. tile in half
- 91 lbs. for portability to and from the jobsite
- 15 Amp motor provides 1220 MWO for demanding applications
- Integrated storage for the cart extension, mitre guide, and wrenches keeps accessories with the saw during transportation
